Download and Flash Stock Firmware in Moto X Play XT1562 [Unbrick]

32
Download Stock Rom for Moto X Play XT1562 and Flash it by following step by step method to Unbrick a soft brick Moto X Play.In many cases while flashing different roms and recovery or Xposed
installed in your device there are many cases you may soft brick your
device
or Bootloop and corrupt partition state or you may like to restore stock rom in your Moto X Play
from any other custom rom like CM12.1 or CM 13 [Android Marshmallow]  in future and like to
revert back to Stock Firmware.


download-and-flash-stock-firmware-moto-x-play

#How to Flash Stock Rom in Moto X Play 2015.

1.Download the stock Rom for your Moto X Play.
2.Download Minimal fastboot drivers from [Here] and extract on your desktop.

3.Make sure that you have install Motorola Driver if not you can download it from below link.

4.Now Extract the stock rom zip file named as X_Play_UK_Retail_XT1562_LPD23.118-10_CFC.xml.zip
in mfastboot folder.
5.Now reboot your device into Bootloader.Don’t know how to do.Follow below steps

      ►How to boot Moto X Play into bootloader mode ?

           1.Power off your device by pressing power button.
           2.Now press Volume Down Key and Power button
              for 5 sec and then release it.

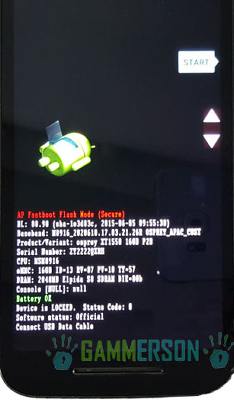

           3.Now You will see a screen like below image that is
              your bootloader menu.

download-and-flash-stock-firmware-moto-x-play
6.Now plug your usb cable in your PC or Laptop.
7.Now open Mfastboot Folder and then press Shift + F10 and then press W and hit enter you will get a command window on the screen.
8.Now Enter all the below command in the command windows one by one.



NOTE: system.img_sparsechunks file name may differ in number or in name – Always check contents of folder you’re working with.

fastboot flash partition gpt.bin
fastboot flash bootloader bootloader.img
fastboot flash logo logo.bin
fastboot flash boot boot.img
fastboot flash recovery recovery.img
fastboot flash system system.img_sparsechunk.0
fastboot flash system system.img_sparsechunk.1
fastboot flash system system.img_sparsechunk.2
fastboot flash system system.img_sparsechunk.3
fastboot flash system system.img_sparsechunk.4
fastboot flash system system.img_sparsechunk.5
fastboot flash modem NON-HLOS.bin
fastboot erase modemst1
fastboot erase modemst2
fastboot flash fsg fsg.mbn
fastboot erase cache
fastboot erase userdata
fastboot reboot

9.Done! Your Moto X Play Edition will be restored to stock android lollipop 5.1.1

see also:

32 COMMENTS

    • Even if you relock the bootloader, the warranty is still voided as per the agreement you accepted when getting the unlock code. If you bought your device in Europe, there is legislation that makes that agreement illegal, so it doesn’t matter if you relock it.

  1. hi…
    As have already using MM custom ROMS, so means bootloader & recovery is for MM in my phone, is it OK to revert to LP 5.1.1 without caring what bootloader & recovery is there? Above flash commands will take care of everything?

    The phone will still remain rooted & with TWRM recovery flashed earlier?

    I am facing 4G/LTE problems with Customs ROMS, specially RR rom, want to revert to stock ROM. Pls. advice.

  2. fastboot flash boot boot.img
    preflash validation failed
    failed (remote failure)

    trying to downgrade from 6.0.1 to 5.1.1 as bluetooth headset keeps failing to send call voice to headset and restart only will fix the issue till it happens again.

  3. fastboot flash boot boot.img
    preflash validation failed
    failed (remote failure)

    trying to downgrade from 6.0.1 to 5.1.1 as bluetooth headset keeps failing to send call voice to headset and restart only will fix the issue till it happens again.

  4. I am currently on Marshmallow 6.0.1 on my X Play.
    After tinkering around with various Custom ROMs, will I be able to return back to Marshmallow 6.0.1 with this guide?
    If not, then where can I download 6.0.1 Stock Firmware?

  5. i was trying to root my moto xplay and i sucessfully unlocked it but while installing the superuser with the trwp my moto got stuck to the “Warning bootloader unlocked”
    it goes to bootloader page i did as instructed
    but my action from
    BOOTLOADER.IMG
    FASTBOOT FLASH LOGO LOGO.BIN
    FASTBOOT FLASH BOOT BOOT.IMG
    FASTBOOT FLASH RECOVERY RECOVERY.IMG
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.0
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.1
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.2
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.3
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.4
    FASTBOOT FLASH SYSTEM SYSTEM.IMG_SPARSECHUNK.5

    show error rest all action were sucesful please help

  6. I tried every step provided above, and i have also installed the softwares properly, but my phone which is bricked does not get flashed and i cant ecover it.
    Error message says:

    Start up failed:
    Your device didn’t start up sucessfully.
    use the software repair assistant on computer to repair your device.
    connect yor device to your computer to get the software repair assistant.

    AP FAstboot Flash mode (secure)
    hab check failed for booth
    failed to verify hab image boot
    failed to validate boot image
    Error: Failed to pass validation, backup to fastboot
    Fastboot reason: Fall-through from normal boot mode.

    i did not set up my device for usb debugging.

    Please help as to what to be done as i tried almost everything. I tried even using RSD lite but it does not seem to detect my device.

  7. flashed successfully, but sim 2 is not working(not detecting) also unable to upgrade to marshmellow… everything else is fine…

  8. My phone is working .. i mean notifications and alarms and all.. But nothing is displayed on screen..
    Can you help ? I mean i cannot even see the bootloader menu.
